Multi-channel audio digitization solution designed for 1:1 transfer as well as high volume throughput of analog and digital audio carriers with best-in-class transfer quality.


Scroll down to discover more details available in EXPERT MODE!

Quality and efficiency are (y)our top priorities.

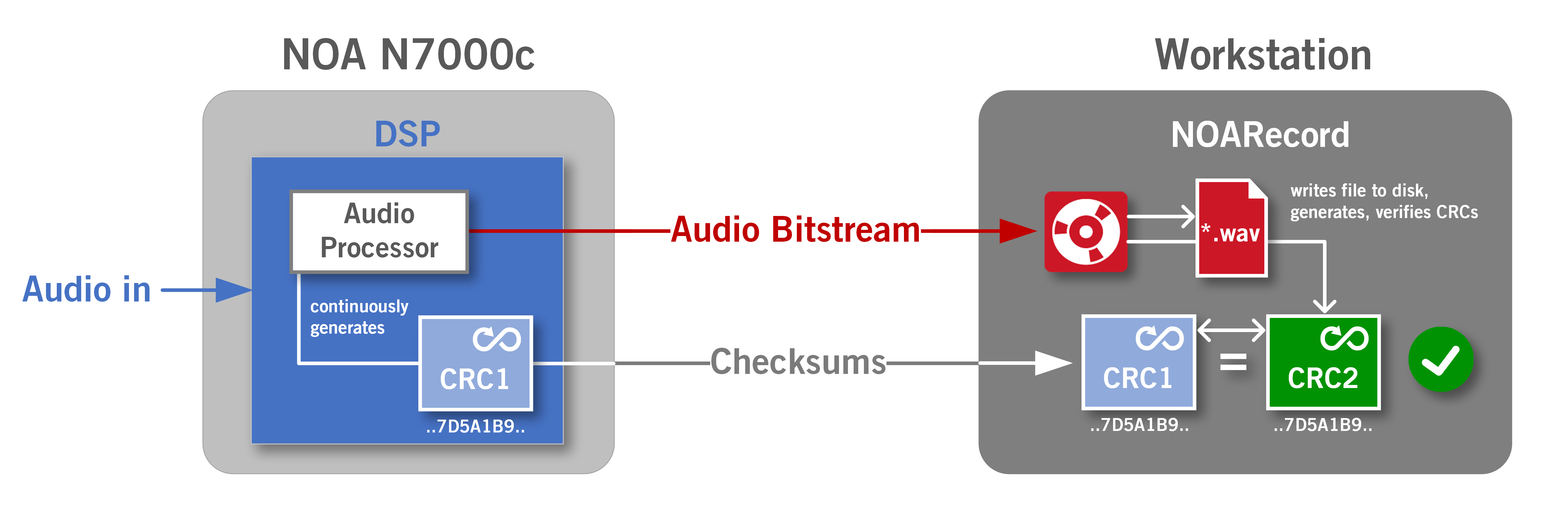

BitProof™ - the end to interstitial errors.
Details

Scalable from a single workstation to a large-scale digitization facility.
Details

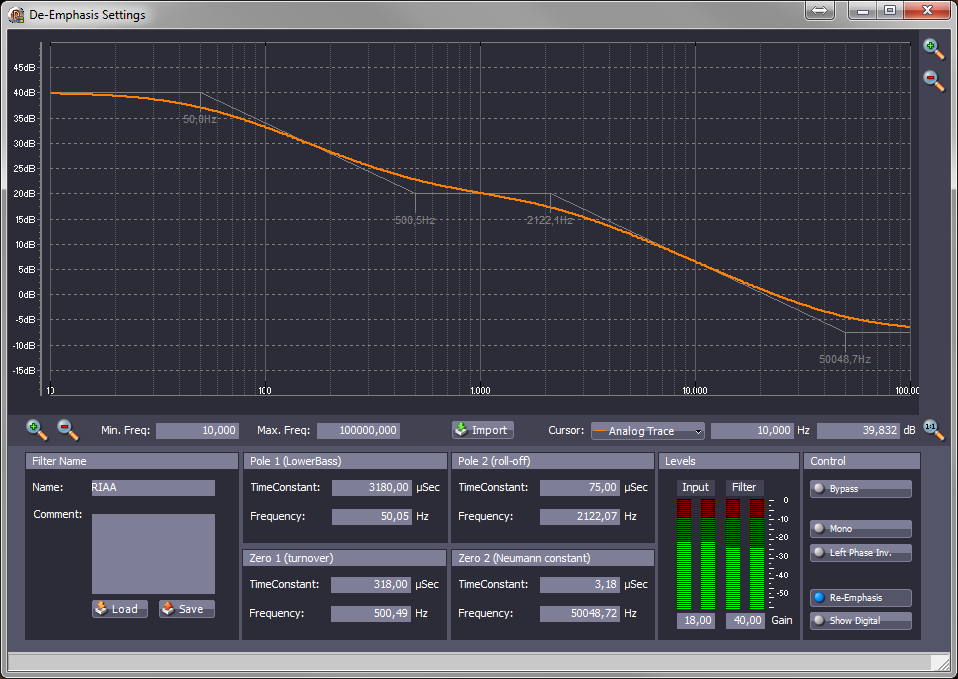

Exceptional audio processing parameters on a hardware level.
Details

... and a lot more!

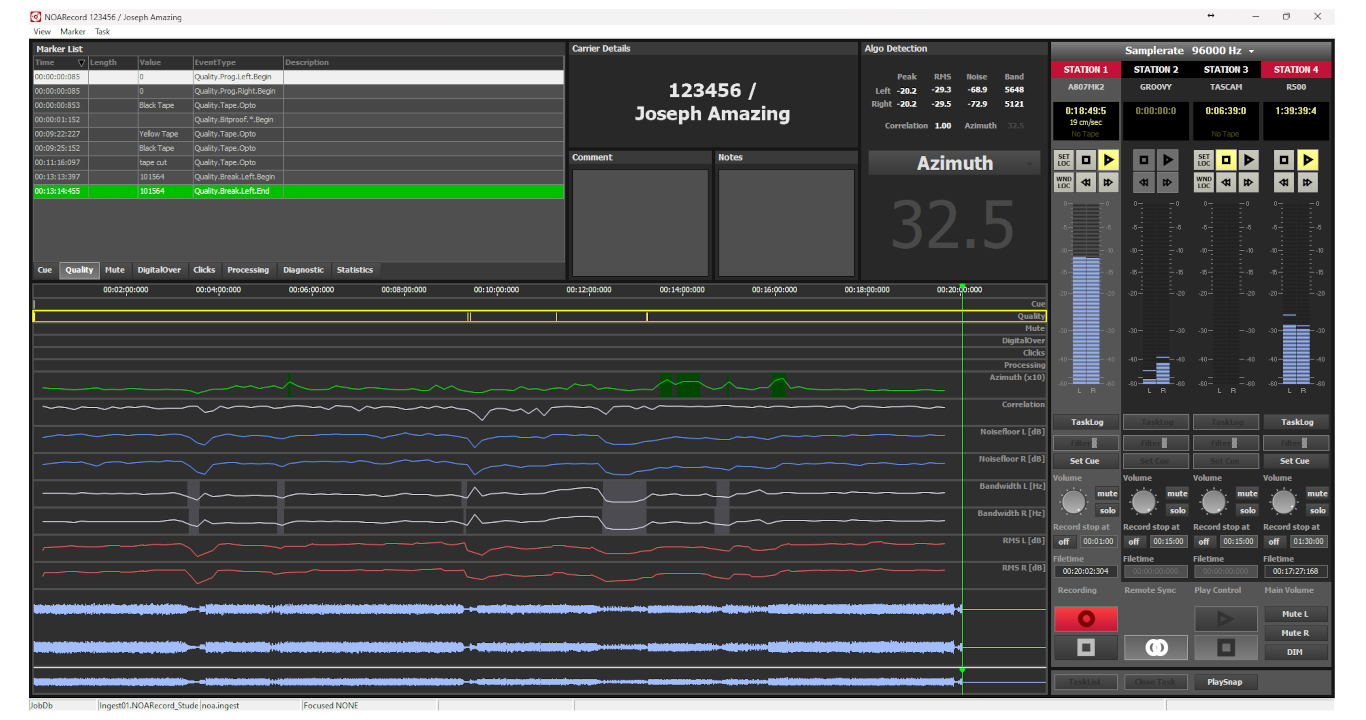

Audio Ingest Perfection

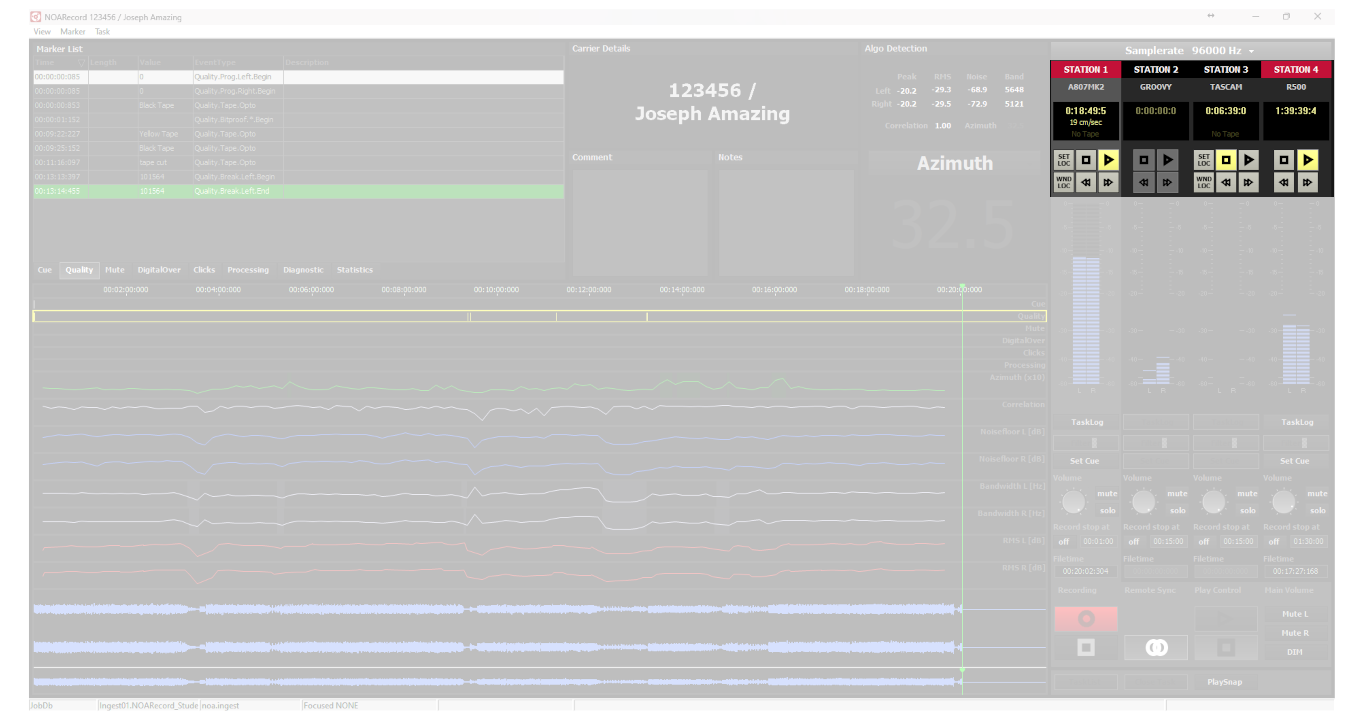

NOARecord's user interface has been designed to provide a comprehensive overview as well as streamlined operation. Explore the application by clicking the buttons or the picture itself.

Audio Ingest Perfection

Explore the application by clicking the buttons or the picture itself!

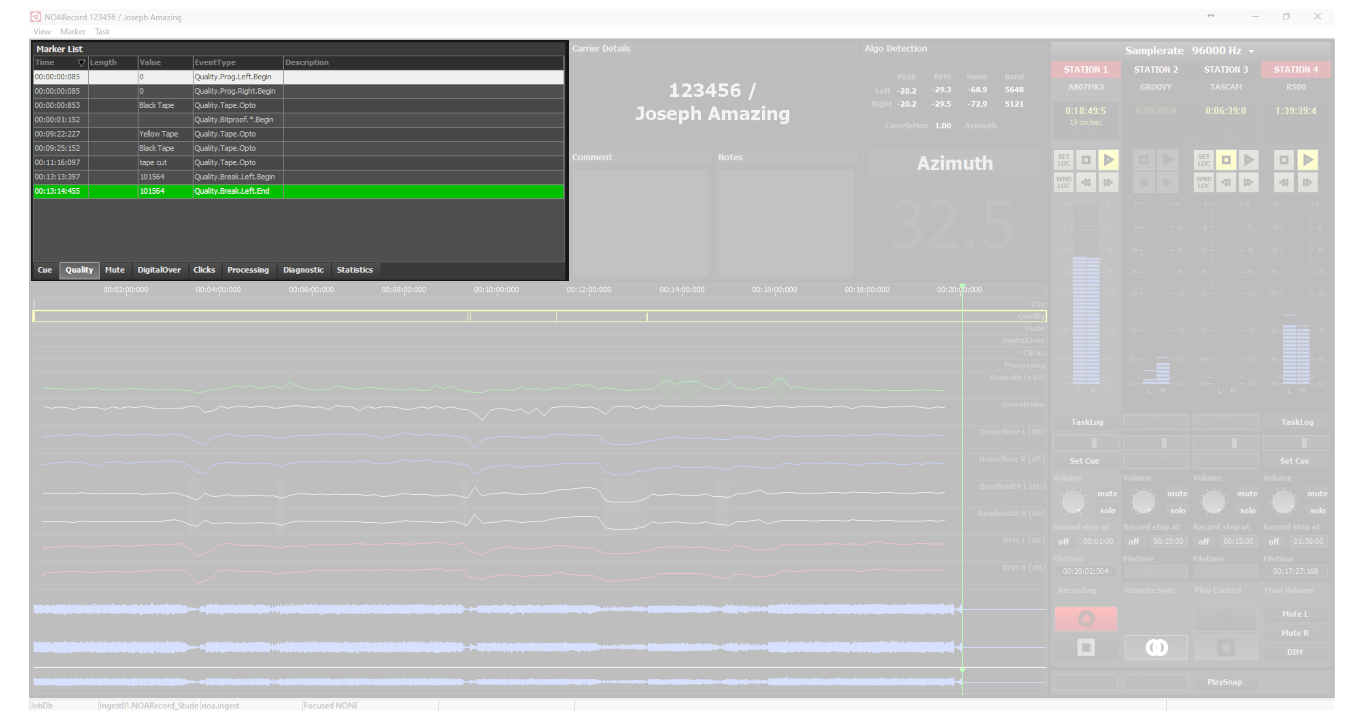

Marker Lists and Analysis Results

Switchable tabs of all markers (cue, quality, statistics, etc.) gathered during running recordings.

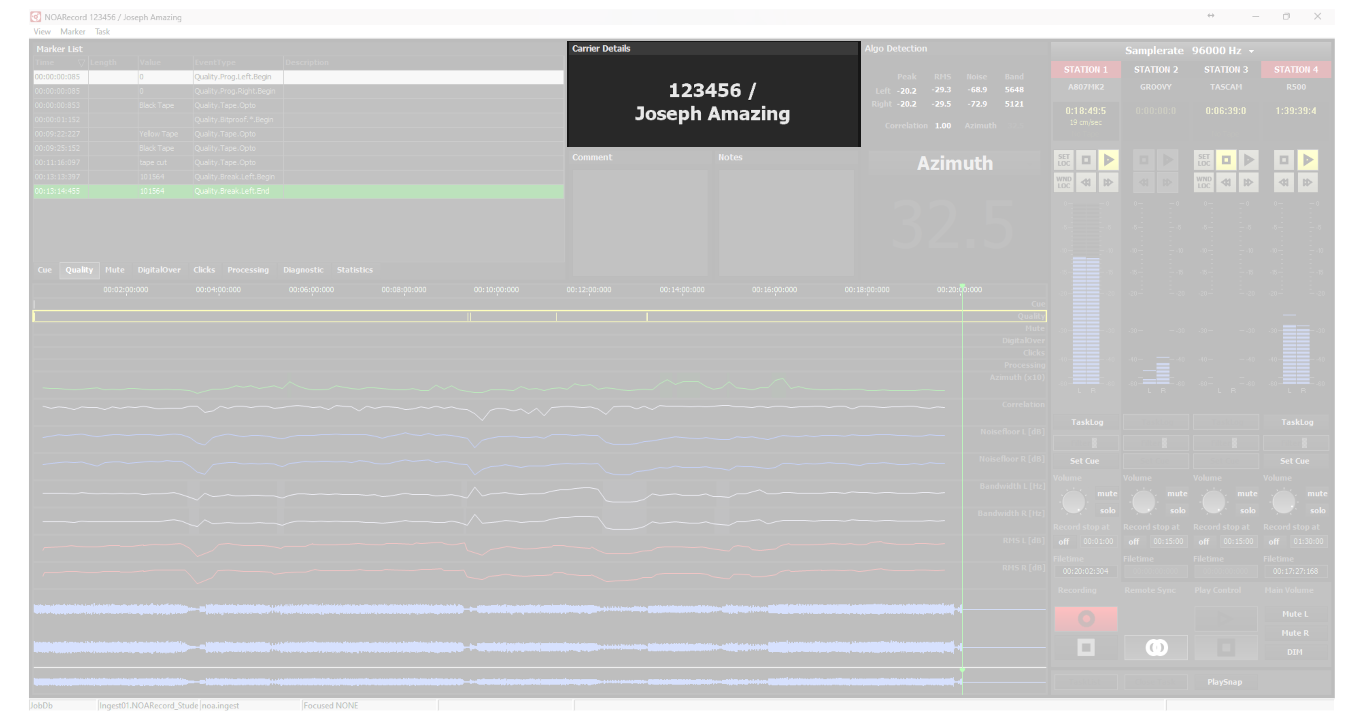

Carrier and Task Info

Basic information on the carrier (e.g. title and ID) to avoid ambiguity errors.

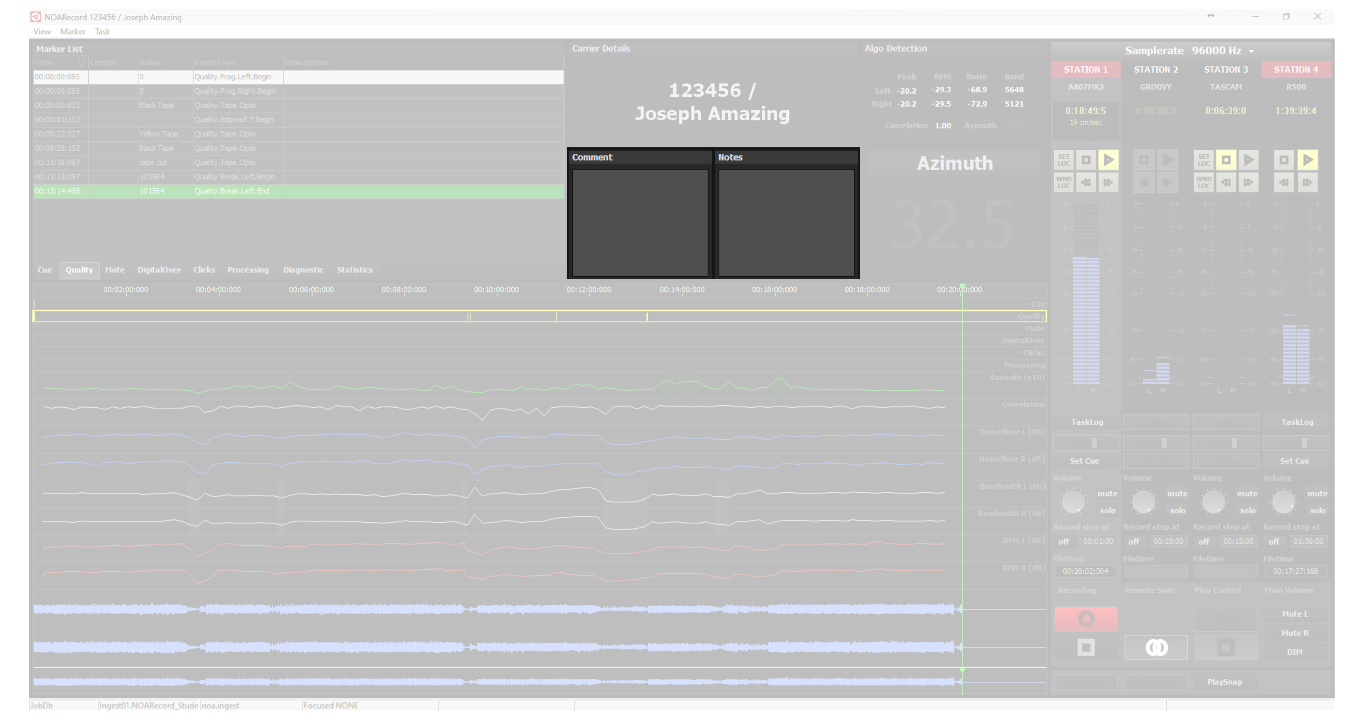

Comment and Notes

Shows information relevant to carrier and/or specific instructions forwarded from previous workflow steps.

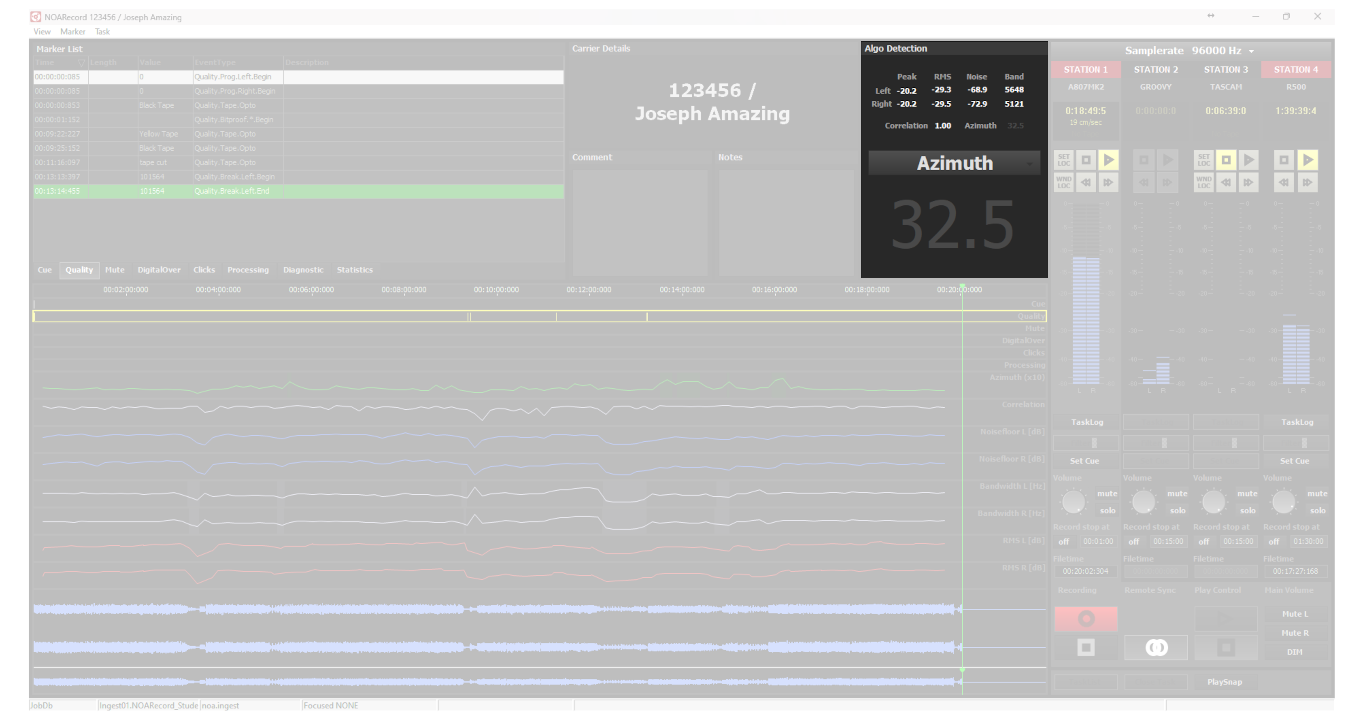

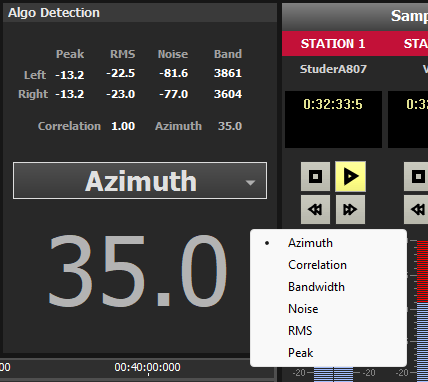

Analysis Live View

Corresponding to the diagnostic traces, this section shows the current values calculated by the algorithmic recognition as large, highly visible numeric values.

Channels Info and Remote Control

Shows information on configured players, timecodes as forwarded by players, play speed etc. as well as remote controls.

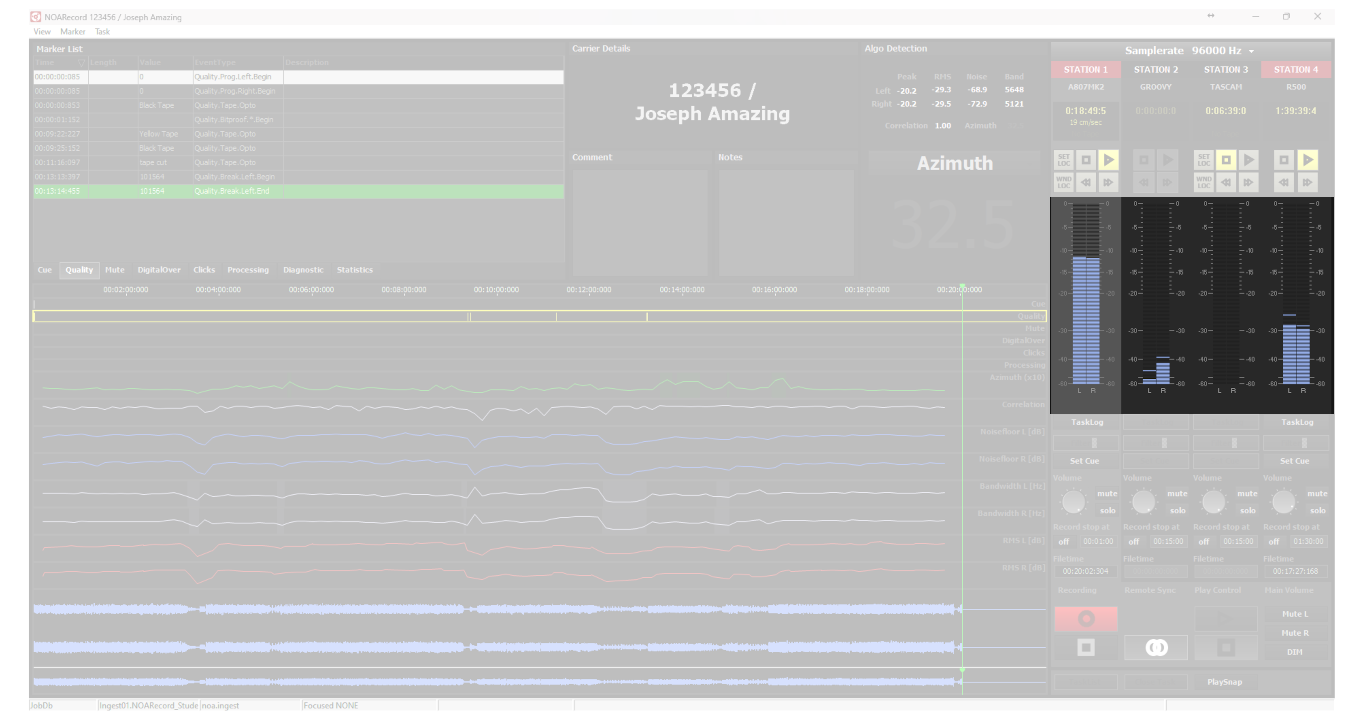

Peak Programme Meters

Shows PPMs of all input channels, helps identification of finished ingests when migrating multiple streams in parallel.

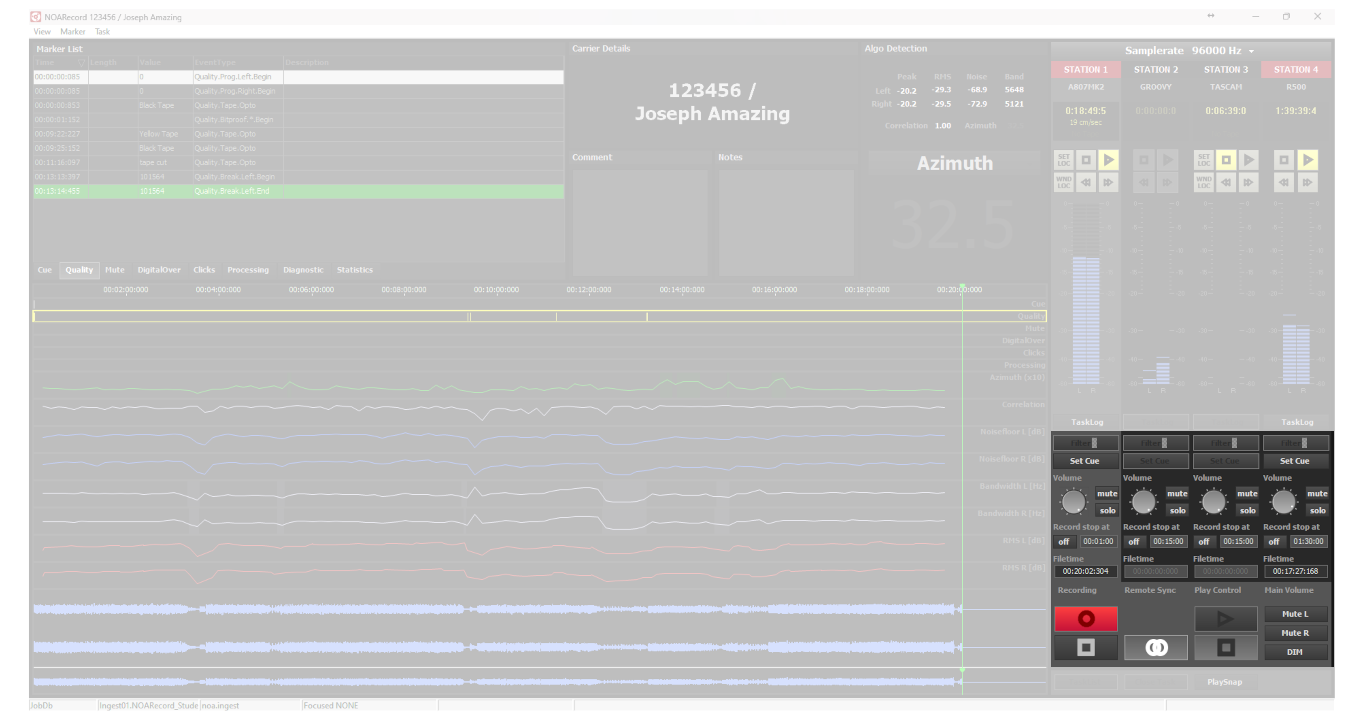

Record and Monitoring Control

Control panel for all functions required to operate and monitor recordings. Features individual settings for channels.

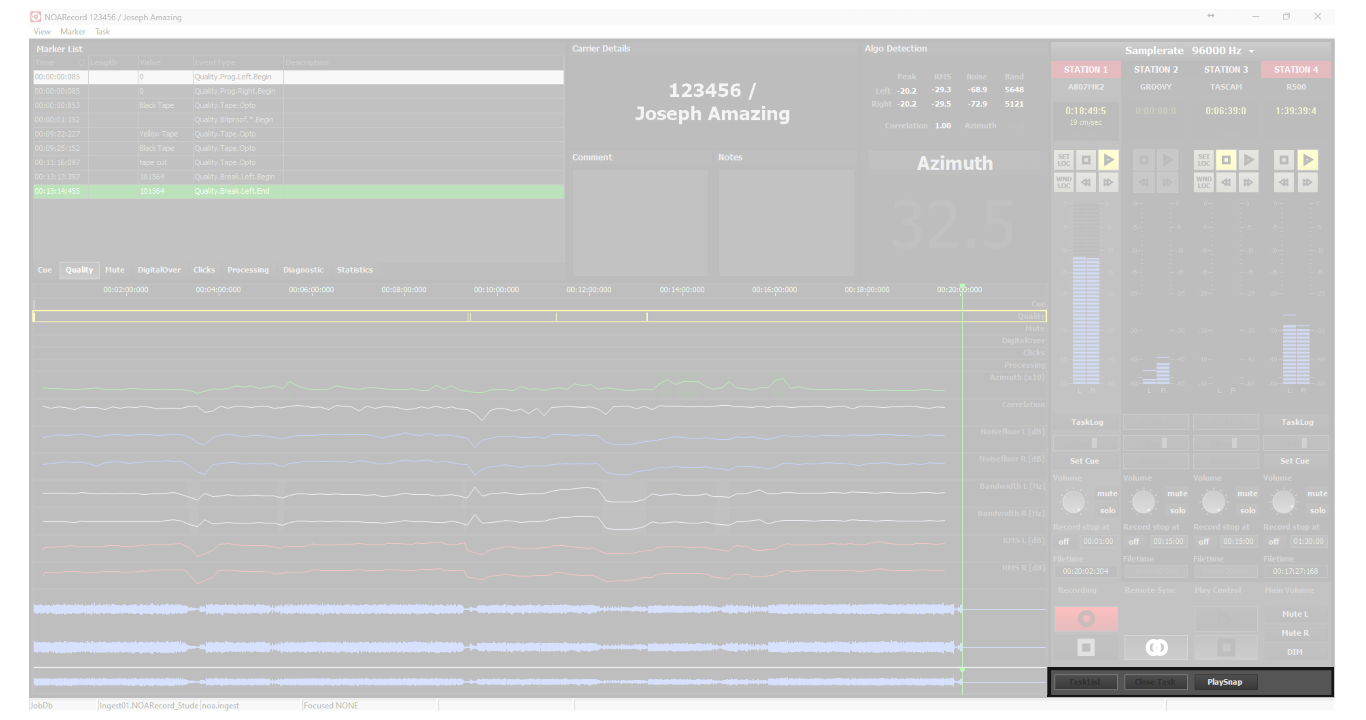

Workflow and Task Control

For accessing and closing tasks as well as PlaySnap feature to prelisten a currently running recording.

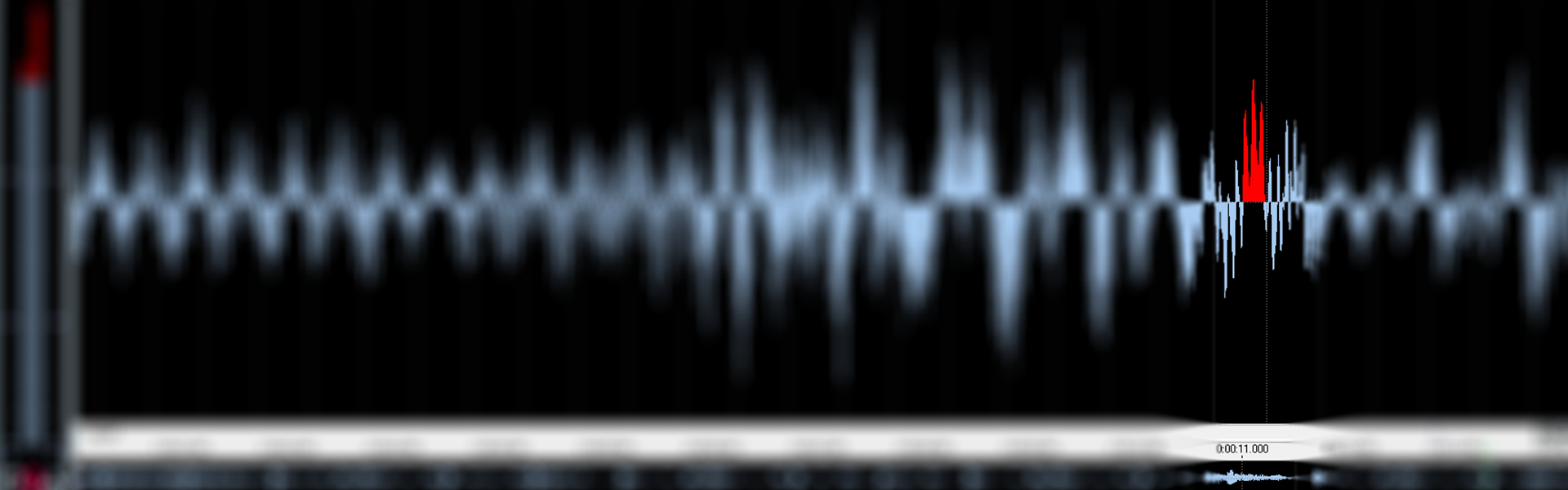

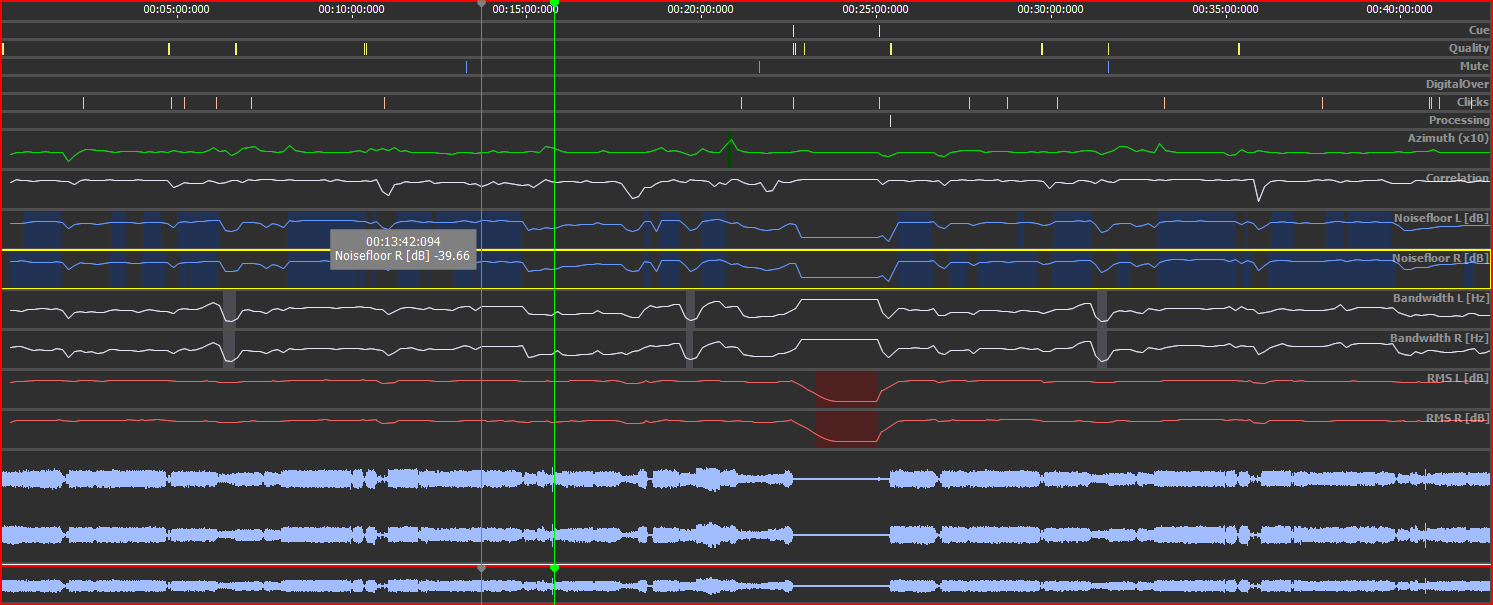

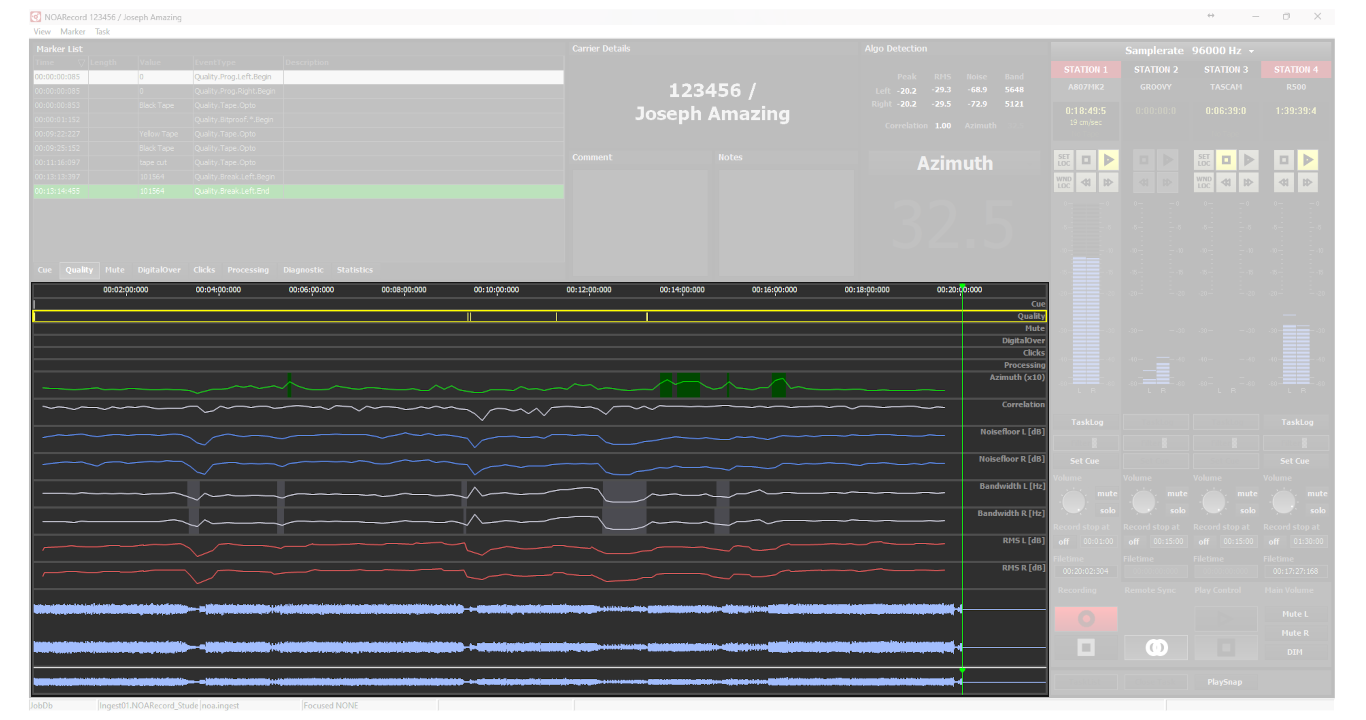

Waveform and Analysis Traces

The main part of NOARecord GUI features a comprehensive, real-time overview of all algorithmic quality analysis traces as well as waveforms of a running recording.

Benefits

Quality

Unparalleled quality levels and control measures

Reliability

Hundreds of channels running smoothly in installations worldwide.

Scalability

Designed to drive projects of all sizes. From standalone setups to large factories.

Economy

Best cost-performance ratio due to parallelity and streamelined usability.

Sustainability

Be sure never to have to re-digitize a carrier ever again.

100+ channels

driving quality-controlled audio digitization worldwide.

2,500,000+ hours

of audio content successfully digitized by NOA clients.

20+ years

of know-how and experience embedded

Traces Event-related Parameters Overall Statistics
  • Azimuth (degree shift @10 kHz)
  • Bandwidth L/R (x10 kHz)
  • Correlation (-1/+1)
  • Level (RMS) L/R (dBfs)
  • Level (Peak) L/R (dBfs)
  • Noise L/R (dBfs)
  • Clicks L/R
  • Digital over on A/D converter L/R
  • Azimuth overs (threshold)
  • Mute L/R
  • Tape condition (via TapeLightBarrier)
  • Number of mutes L/R
  • Number of clicks L/R
  • Mean noise L/R
  • Mean RMS L/R
  • Mean bandwidth L/R
  • Max peak L/R
  • Mean correlation

Jean-Christophe Kummer

NOA, CEO

"The beginning of the NOA story. NOARecord embodies our pursuit of excellence, addressing real-life archive challenges with the highest quality standards, and seamlessly blending German technology with an Austrian heart. Appreciated worldwide..."

Setup and Scaling

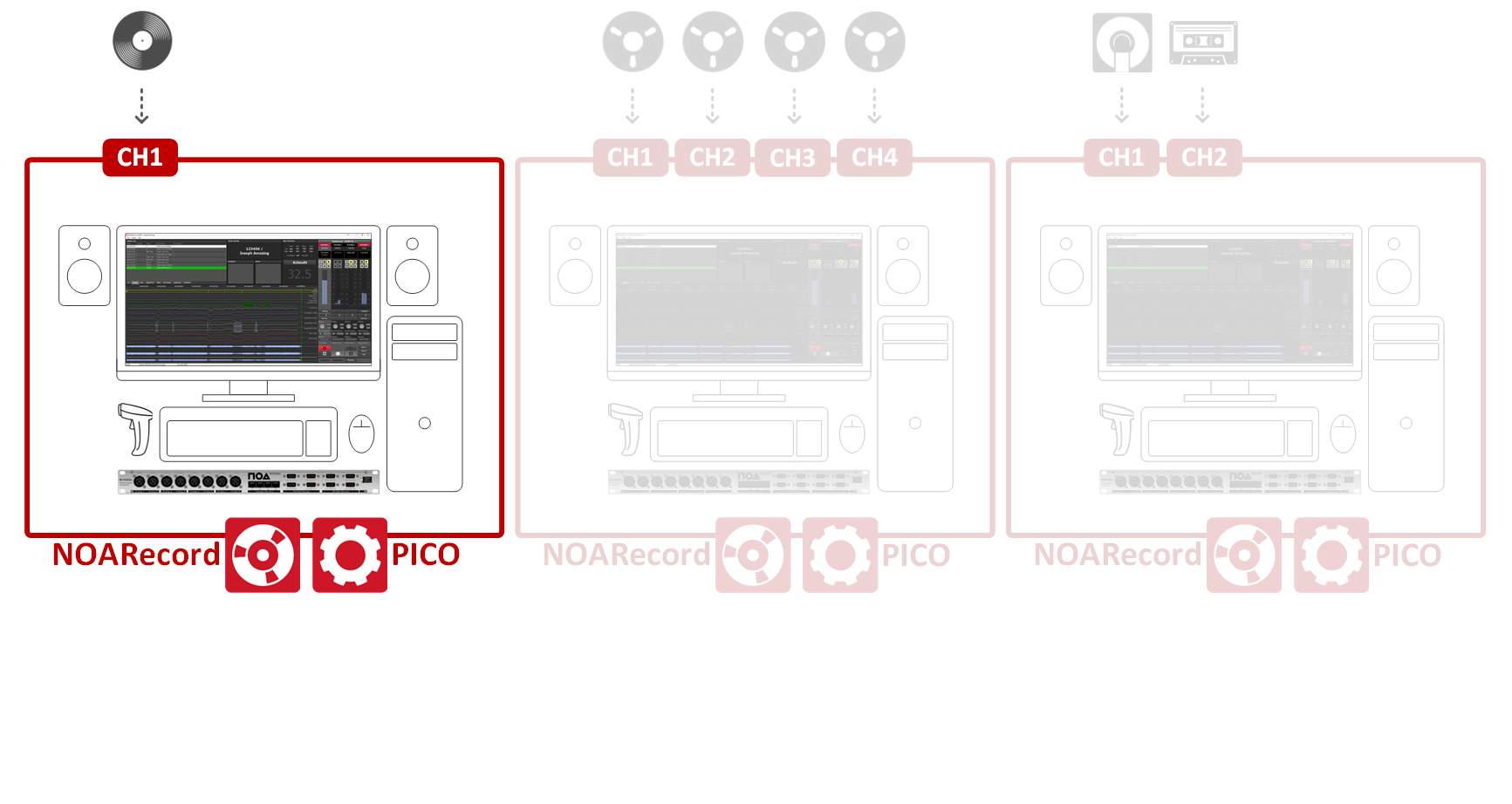

Entry Level Setup

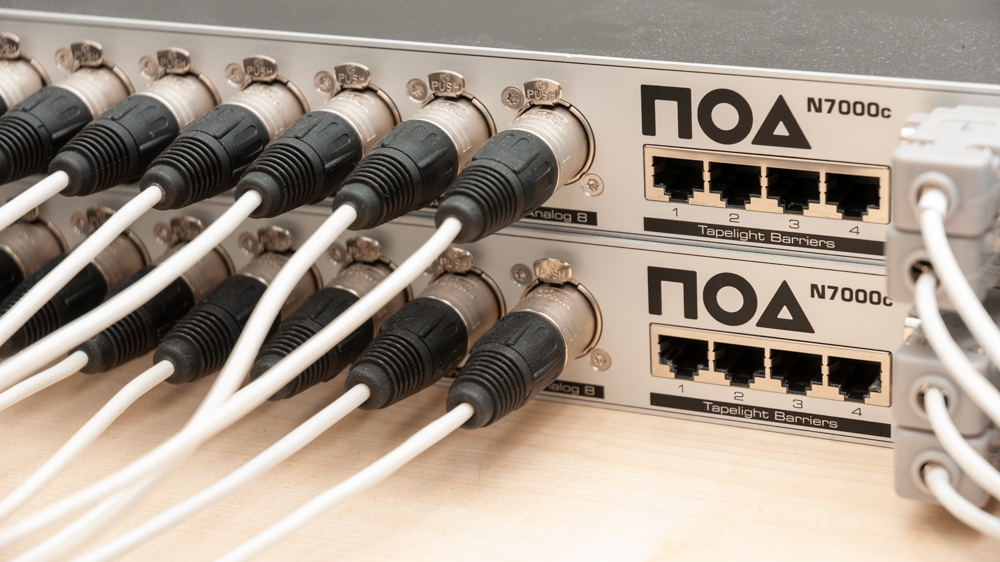

The entry level setup consists of 1 autonomous workstation (provided by client), 1 N7000c unit and 1 channel of NOARecord; all of which is powered by PICO.

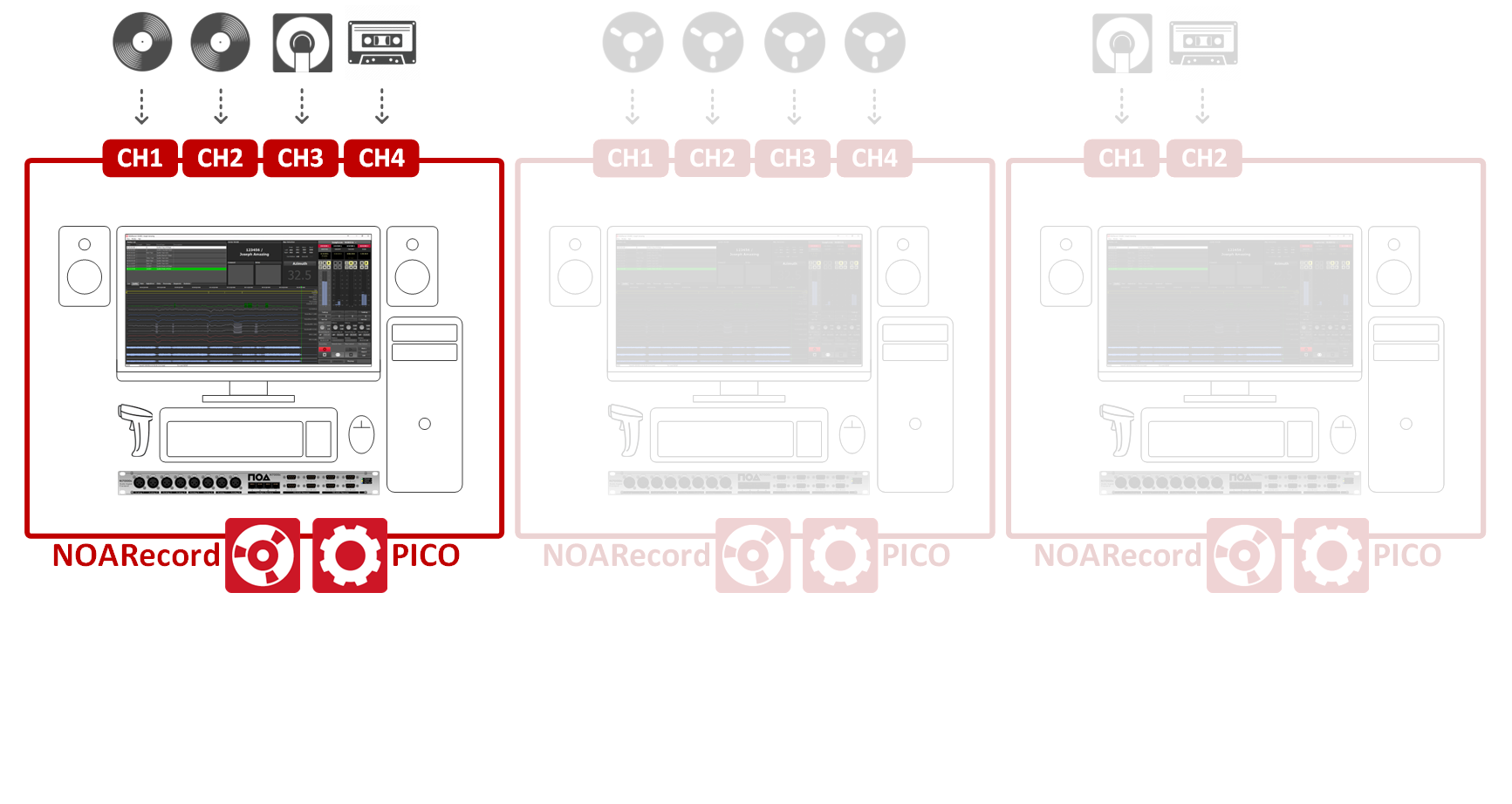

Scaling Channels

An NOARecord PICO station may be upgraded at any point to up to 4 stereo channels of input.

Scaling Channels

An NOARecord PICO station may be upgraded at any point to up to 4 stereo channels of input.

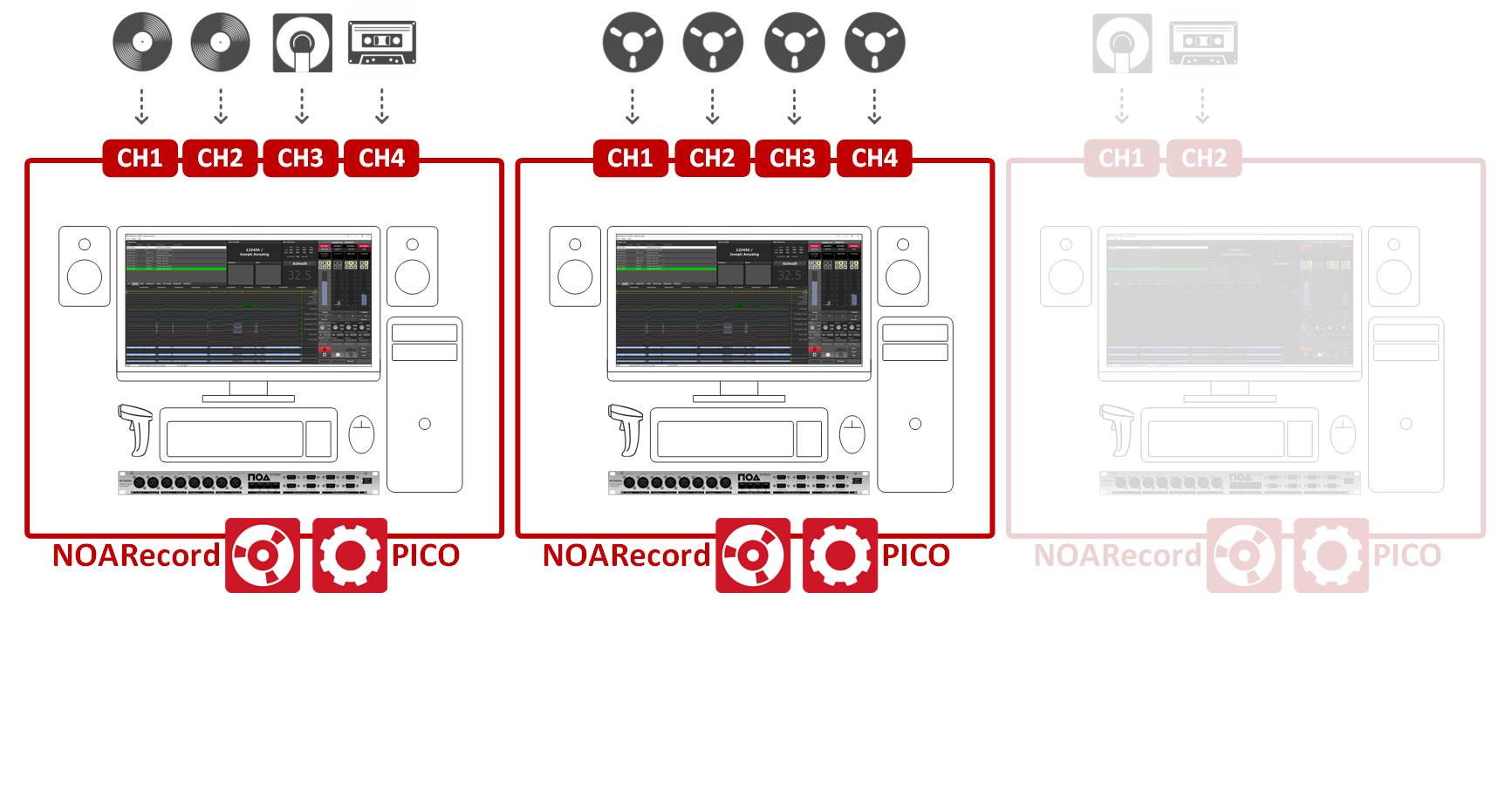

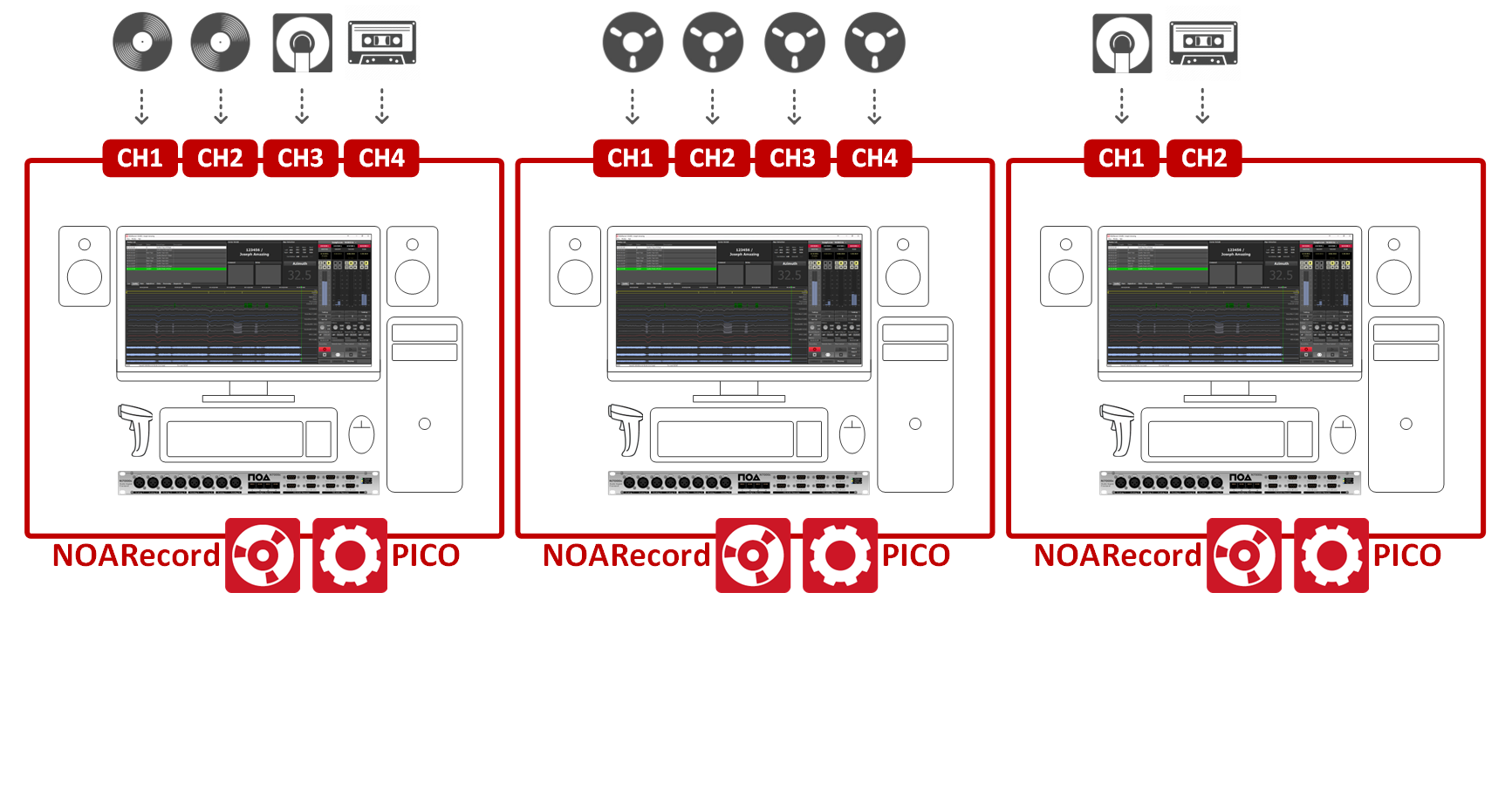

Scaling Workstations

Any number of independent NOARecord Pico workstations with any number of input channels each may be set up for a project; for more efficient work sharing, a workflow system (either jobDB or mediARC or an existing 3rd party system, connected via REST API).

Scaling Workstations

Any number of independent NOARecord Pico workstations with any number of input channels each may be set up for a project; for more efficient work sharing, a workflow system (either jobDB or mediARC or an existing 3rd party system, connected via REST API)

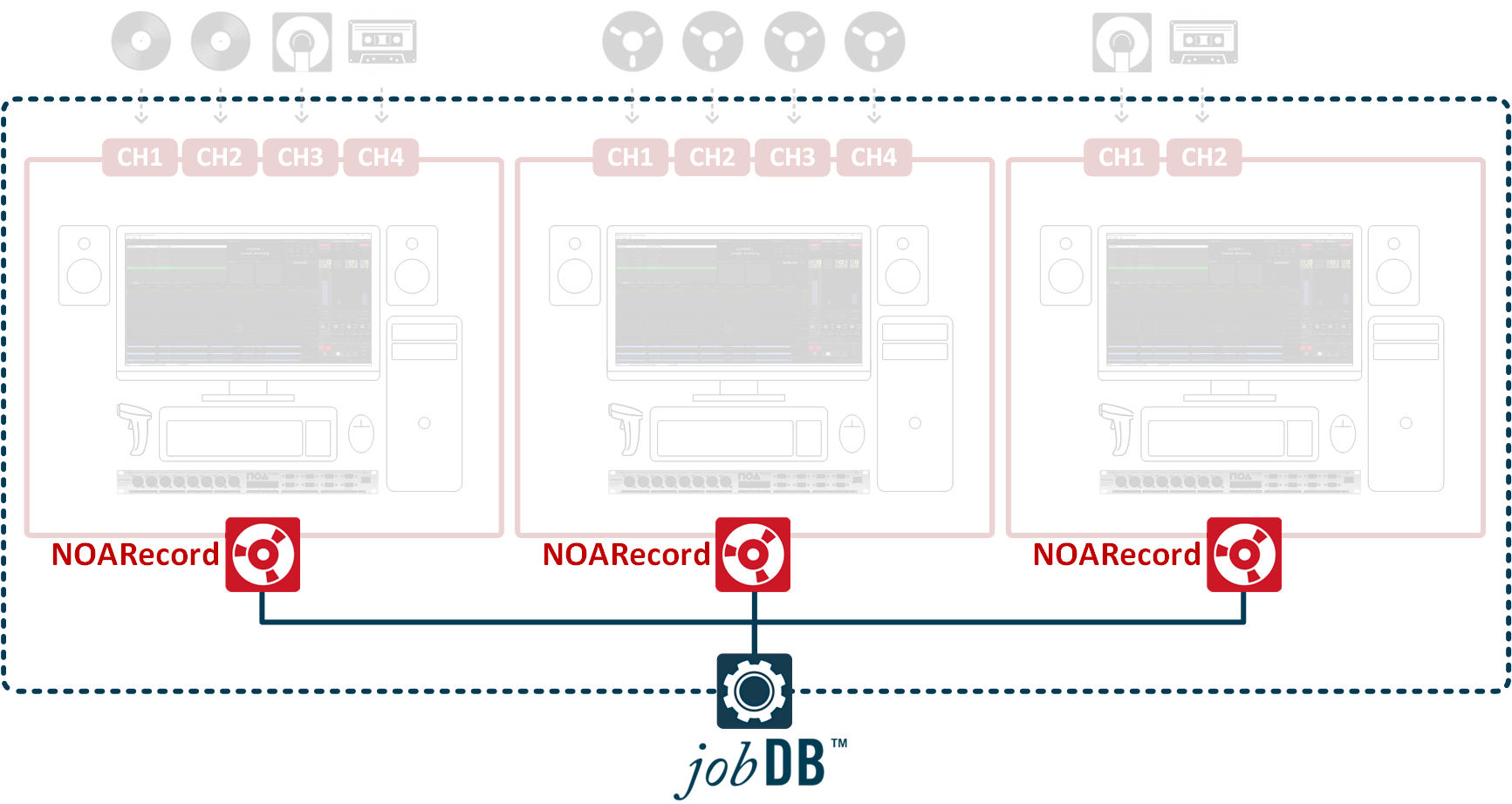

Building Factories

As soon as individual stations are to be integrated into a comprehensive industrial digitization facility, jobDB will replace PicoService and its local functions to be integrated into a client-server working scenario.

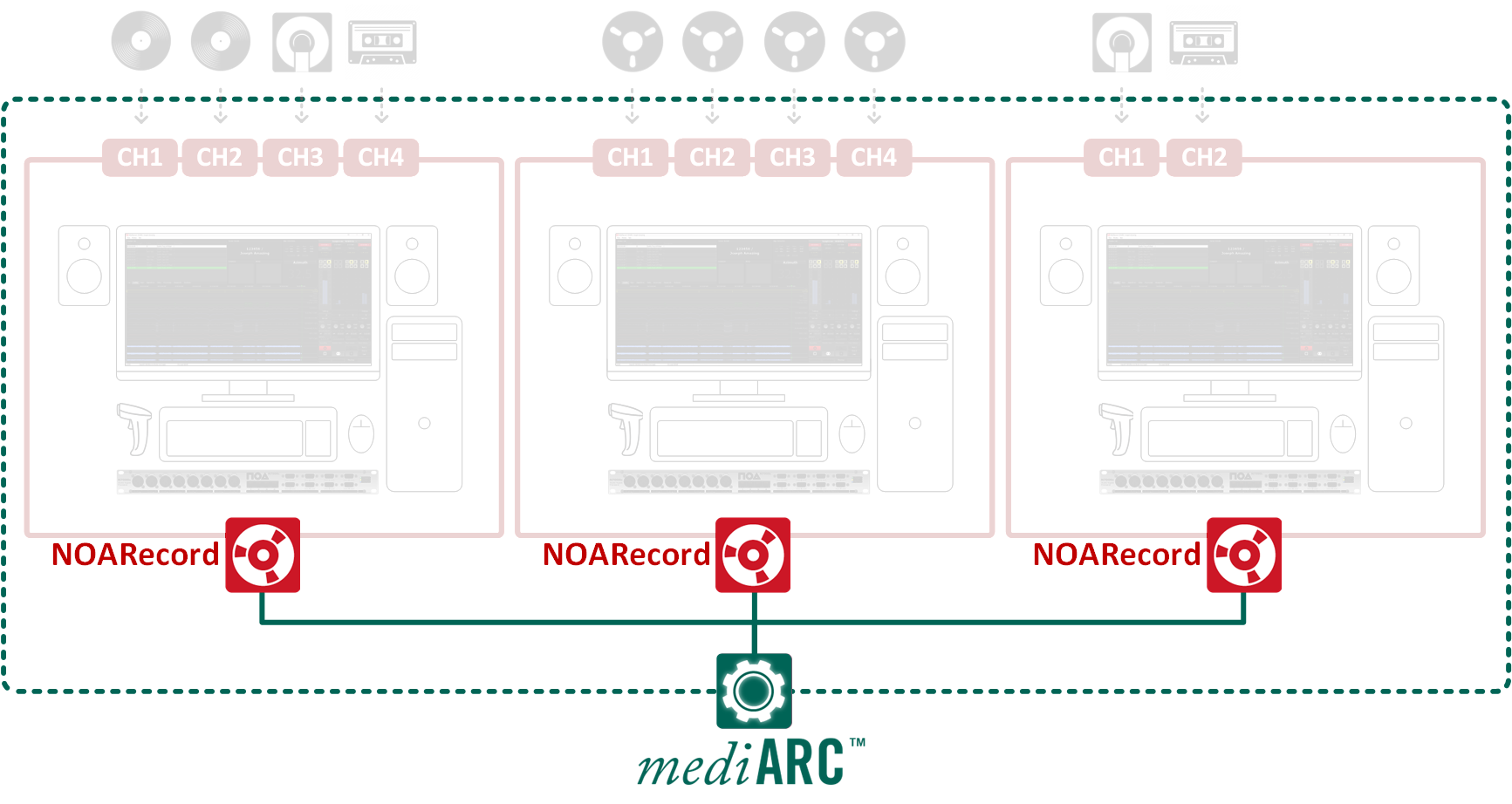

Building Archives

For projects that go beyond the exclusive realm of media digitization, aspiring to build a comprehensive end-to-end archive system that includes metadata, asset access, and sharing capabilities, ingestLINE integrates with mediARC Archive Asset Management.

Resources

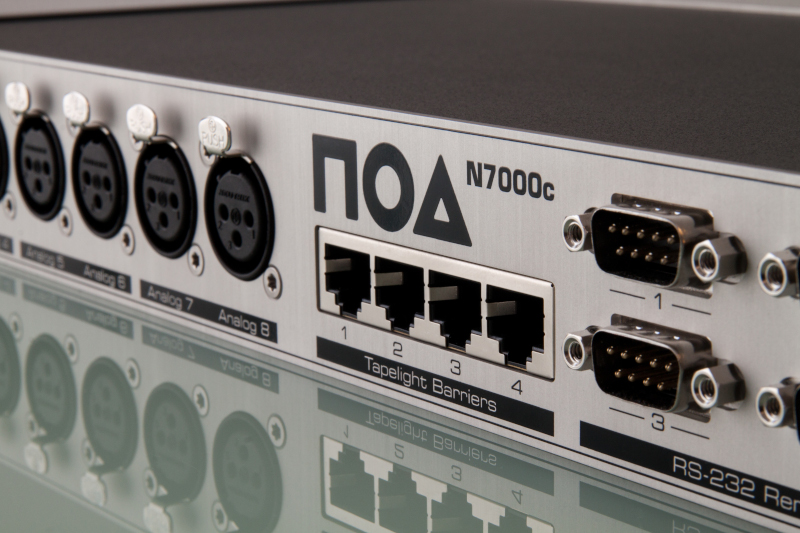

NOA N7000c (v1.0)
...
