Video digitization on a single-station workplace following the highest industry standards for workflow management, transfer quality, and encoding.
FrameLector PICO is an all-in-one video digitization solution including FrameLector software with licenses for 1 to 4 channels of SD or HD input, the VTRi hardware, RF-Sensorplates, and PicoService - providing a compact, production-ready system.
It enables high-quality transfer of analog and digital video sources (via SDI), supports up to four parallel digitizations, and integrates seamlessly with existing orchestration environments, making it a scalable and reliable solution for professional archives.
FrameLector PICO is installed on a PC provided by the client based on NOA’s recommended specifications. Alternatively, a fully configured turnkey system or rental setup can be provided by NOA on request.
FrameLector Software and VTRi Hardware
FrameLector PICO is available as a NOA Software and Hardware package for straightforward self-installation on a client's PC that meets NOA’s recommended specifications, ensuring reliable and high-performance digitization. The solution can be acquired as a capital investment or provided through a flexible rental model.
FrameLector PICO is also offered as a fully integrated, ready-to-operate rental system, including professional video playback devices and PC workstation. Each unit is pre-configured, tested, and optimized by NOA prior to delivery. The system arrives plug-and-play ready, enabling rapid deployment and immediate start of digitization workflows.
FrameLector helps archives move beyond simply detecting visible errors by helping to identify where quality issues actually originate. When analyzing files created from earlier transfers, it is difficult to determine whether defects were burnt into the picture (e.g., as a result of a previous migration) or originate from a physical problem during the latest recording. NOA’s transfer quality control addresses this by logging concrete physical transfer issues that cause picture or sound errors.

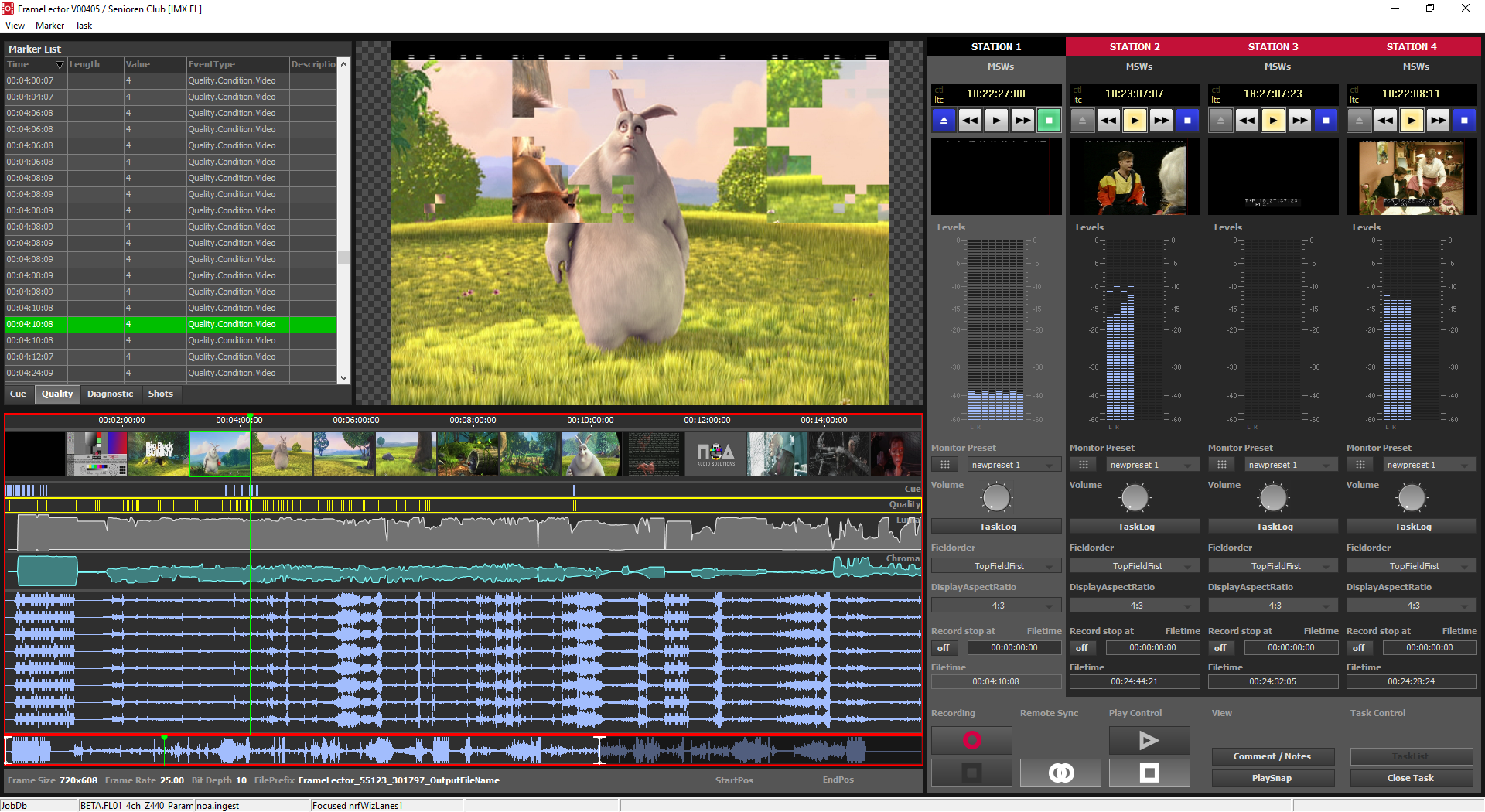

During and after transfer, operators receive a clear, comprehensive overview of all relevant quality and content information, enabling faster decisions, targeted corrective action, and more reliable preservation results.
By connecting to NOA's RF-Sensorplates, FrameLector goes beyond standard ISR event capture by enabling direct RF signal acquisition during recording for deeper transfer insight. Using this dedicated sensor plate mounted at defined points inside the VTR, the system captures the RF signal and forwards it to FrameLector for detailed analysis. This allows operators to identify transfer issues early and safeguard digitization quality.
A key advantage is broad player compatibility, with support for a wide range of legacy machines, including U-Matic, 1-inch C, DV, DVCPro, Betacam SP, and Betacam SX.
|
|
|
|
|---|---|---|---|
Team size = 1? |
PICO is not just a digitizer. |
Archive spread across multiple locations? |
Operational within a single day. |
With NOA’s PICO solution, a single operator can achieve professional, high-throughput digitization on one workstation. PICO integrates all core preservation components into a compact, quality-controlled environment that manages every step from ingest to final file creation. |
It manages conversions, central databases, user roles, workflow design, and full process logging in one system. Transcoding and distribution are built in. No servers. No complex networks. No heavy IT infrastructure. Just one powerful workstation. |
A PICO setup fits into a suitcase and can be deployed at any branch site. Pre-configured and ready to operate, it requires only minimal on-site setup. Operator training is reduced to simple workflow instructions, enabling immediate productivity without relocating your archive. |
Install the software, connect the players, load workflow templates, and complete a short system introduction. PICO’s low complexity minimizes ramp-up time and gets small facilities productive almost immediately. |
jobDB Archive Workflow Management
jobDB is database-controlled workflow engine that serves as a robust backbone for all archive projects that require central management, advanced media processing and sophisticated task division.
mediARC Archive Asset Management
mediARC is an OAIS compatible enterprise-level framework for Archive Asset Management, which allows for tightly integrated handling of both media content and its associated metadata, whilst putting interaction with the system under the control of a dedicated workflow engine.
Pico workstations, like all NOA solutions, is designed to run on commercial off-the-shelf (COTS) hardware and to operate seamlessly on standard Windows operating systems. This approach guarantees that the hardware underlying NOA's solutions is not only easily maintainable and accessible but also highly reliable, offering users peace of mind with its long-term stability and dependability.
For optimal operation, NOA provides:
